OH-58D Kiowa Warrior

유앤아이의 뉴패러다임 2008. 11. 23. 22:50

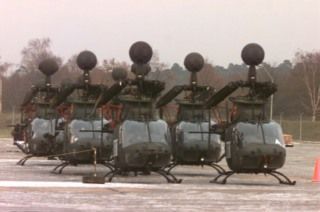

OH-58D Kiowa Warrior helicopter
공격용 헬리콥터 OH-58D


스펙

Crew 2 pilots
Height 12 feet 10.6 inches
Length 41 feet 2.4 inches
Rotor diameter 35 feet
Maximum gross weight 4,500 pounds (unarmed);
5,500 pounds (armed)
Maximum airspeed 125 KIAS
Cruise airspeed 80 KIAS
Endurance 2 hours
Cargo hook capacity 2,000 pounds
Litter capacity 4 (externally)
Troop-carrying capacity 6 (externally).
Avionics
  • Data transfer system ground station, data transfer module, data transfer receptacle in the aircraft.
  • Video tape recorder records up to 2 hours of copilot's MFD.
  • ANVIS display symbology system provides basic flight information.
    • Mast-mounted sight
  • Thermal imaging sensor.
  • Television sensor.
  • Laser range finder/designator.
  • Optical boresight system.
    • Weapons
  • .50-caliber heavy machine gun.
  • 70-millimeter folding fin aerial rocket.
  • Air-to-air Stinger missile.
  • Hellfire modular missile system.

      • Communication equipment
    • Two VHF-FM AN/ARC-186 or AN/ARC-201 SINCGARS.
    • One UHF AN/ARC-164 Have Quick.
    • One VHF-AM AN/ARC-186.
    • Two TSEC/KY-58.
    • HF capable (radio not installed).
    • TSEC/KY-75 (device not installed).
    • Retransmission capabilities.
    • FM homing (AN/ARC-186 only).
    • Airborne target handover system (digital communications).
      • Navigation equipment
    • Attitude and heading reference system (Litton LR-80 Inertial).
    • AN/ASN-137 doppler.
    • AN/ASN-43 directional gyro.

      • Aircraft survivability equipment


    • AN/APX-100 IFF.
    • AN/ALQ-144 IR jammer.
    • AN/APR-39A radar warning receiver.
    • AN/APR-44(V)3 radar warning receiver.
    • AN/AVR-2 laser detecting set.

      •
